TRZCQ270 Speedy Vacuum Degasser: Rapidly Propel Gas Elimination for Industrial Process Optimization
Product Introduction
In the oil and gas drilling sector, entrained gas in drilling mud gives rise to reduced operational efficiency, wellbore instability, and potential safety hazards. Our TRZCQ series vacuum degasser, an integral component of TR's solids control and waste management portfolio, is purpose-built to tackle these challenges head-on.

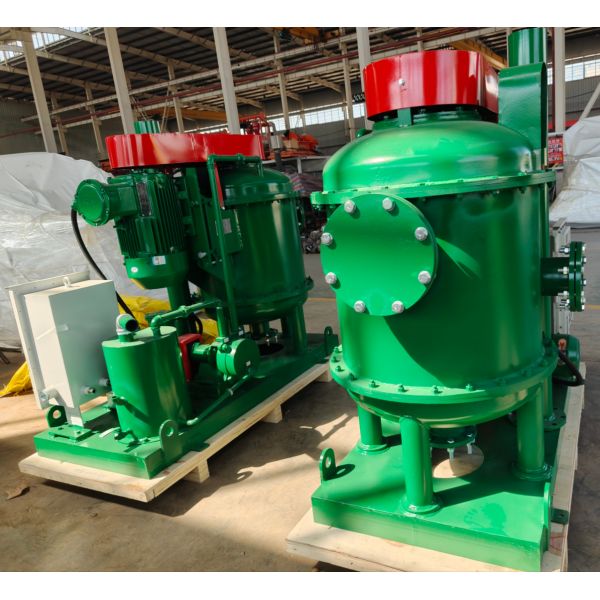

The TRZCQ270 model stands out with its precision engineering. Equipped with a high-capacity vacuum pump, it generates a powerful vacuum force that swiftly draws in gas-laden drilling mud. Within the unit, strategically designed baffles and specialized separation chambers work in tandem to optimize gas-liquid separation. Once separated, the extracted gases are safely directed through venting systems, while the purified mud is seamlessly returned to the drilling circulation system, ensuring uninterrupted and efficient operations.clean mud is returned to circulation.
Main Application
The TRZCQ series is widely used in industries such as Coal Bed Gas Solids Control, Oil and Gas Drilling, Drilling Waste Management, Water Drilling, and more.
TR offers high - quality products at reasonable prices, along with top - notch after - sales service for domestic and international clients.
Advantages of TR Vacuum Degasser
- Belt drive makes it avoid the complexity of the reducing gear, and guarantee the long time working time without trouble.
- Scientific and reasonable design for structure. It can achieve effective separation of gas and liquid, filter out impurities, and ensure exhaust pipe is always clear;
- Vacuum degasser makes mud throw towards barrel wall at a high speed by rotor. Bubbles in the mud are broken thoroughly, making the vacuum degasser have high degassing efficiency up to 95%.
- There is a gas-water separator in vacuum degasser, which can avoid water and gas are discharged at the same time, and also can supply water to the vacuum pump, saving water and environment-friendly.
- Water ring type of vacuum pump work is always at a constant temperature state, suitable for flammable and explosive gas suction.
Technical Parameters of TR Vacuum Degasser
| Model |
TRZCQ240 |
TRZCQ270 |
TRZCQ300 |
TRZCQ360 |
| Body Diameter |
700mm |
800mm |
900mm |
1000mm |
| Capacity |
240 m³/h |
270 m³/h |
300 m³/h |
360 m³/h |
| Vacuum Degree |
-0.030-0.045Mpa |
-0.030-0.050Mpa |
-0.030-0.045Mpa |
-0.030-0.045Mpa |
| Transmission Ratio |
1.68 |
1.68 |
1.68 |
1.72 |
| Degassing Efficiency |
≥95% |
≥95% |
≥95% |
≥95% |
| Motor Power |
15kW |
22kW |
30kW |
37Kw |
| Vacuum Pump Power |
2.2kW |
3kW |
4kW |
7.5kW |
| Impeller Speed |
860r/min |
870r/min |
876r/min |
880r/min |
| Dimension |
1750×860×1500mm |
2000×1000×1670mm |
2250×1330×1650mm |
2400×1500×1850mm |
| Weight |
1100kg |
1350kg |
1650kg |
1800kg |
Operational Theory
TR Vacuum degasser utilize negative pressure by vacuum pump to withdraw entrained gases from the mud. In order for this to work, mud is pumped through a venturi, which develops a negative pressure in the vessel by vacuum pump, thus sucking mud into the unit. The choice between horizontally- or vertically-mounted units is typically based on the footprint requirements of the specific rig.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
